alist-strm + alist + jellyfin 使用网盘空间搭建自己的影视库

alist-strm

开源的strm文件生成脚本，git地址：GitHub - tefuirZ/alist-strm

因为 jellyfin+alist 有可能会引起网盘的风控，生成strm文件之后，所有的刮削动作都是在服务器本地目录进行。

部署

docker一键部署

docker run -d --name alist-strm -p 15000:5000 -v /home:/home  - /volume1/alist-strm/config:/config  itefuir/alist-strm:latest

#15000是宿主机端口，5000是容器端口
#/home是本地路径

docker-compose.yaml配置（推荐）

video 是生成strm文件的目录，后面jellyfin也需要读取此文件夹进行刮削

version: "3"
services:
    alist-strm:
        stdin_open: true
        tty: true
        volumes:
            #跟命令行一样的 前面是宿主机的目录
            - /volume1/video:/volume1/video
            - /volume1/alist-strm/config:/config
            #第二行填写的是容器中数据库的存放位置
        ports:
        	#:前面是宿主机的端口，自由选择
            - "15000:5000"
        container_name: alist-strm
        #restart: always
        image: itefuir/alist-strm:latest
        network_mode: bridge

运行测试

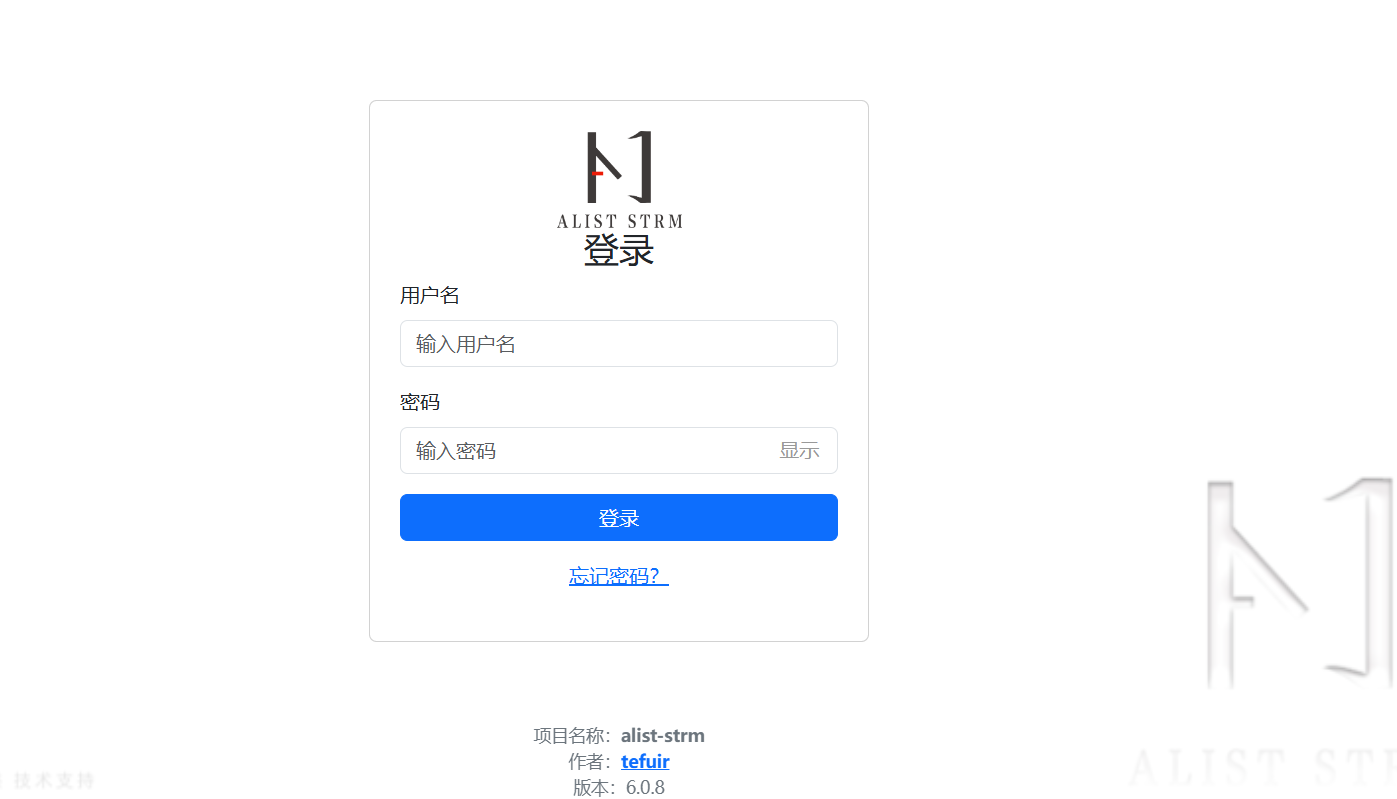

浏览器地址栏输入服务器地址+端口，如果跟配置文件一致，输入15000，看到如下界面就是成功了

alist

一个支持多种存储的文件列表程序，使用 Gin 和 Solidjs ，简单来说就是可以将网盘或者远程储存放在一起管理

部署

docker

docker run -d --restart=unless-stopped -v /etc/alist:/opt/alist/data -p 5244:5244 -e PUID=0 -e PGID=0 -e UMASK=022 --name="alist" xhofe/alist:latest

docker compose

version: '3.3'
services:
  alist:
    image: 'xhofe/alist:beta'
    container_name: alist
    volumes:
      - '/etc/alist:/opt/alist/data'
    ports:
      - '5244:5244'
    environment:
      - PUID=0
      - PGID=0
      - UMASK=022
    restart: unless-stopped

反向代理配置参考（可以忽略）

location / {
  proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
  proxy_set_header X-Forwarded-Proto $scheme;
  proxy_set_header Host $http_host;
  proxy_set_header X-Real-IP $remote_addr;
  proxy_set_header Range $http_range;
	proxy_set_header If-Range $http_if_range;
  proxy_redirect off;
  proxy_pass http://127.0.0.1:5244;
  # the max size of file to upload
  client_max_body_size 20000m;
}

运行测试

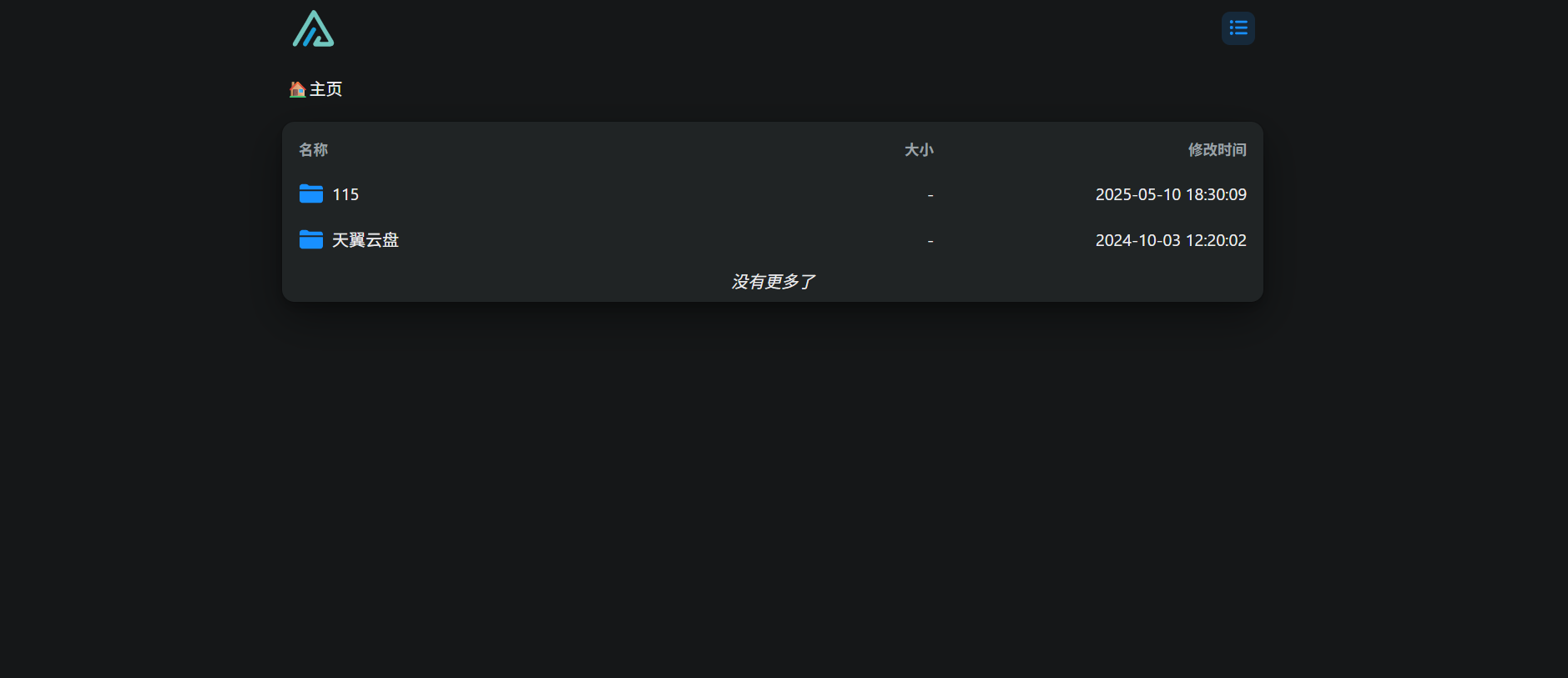

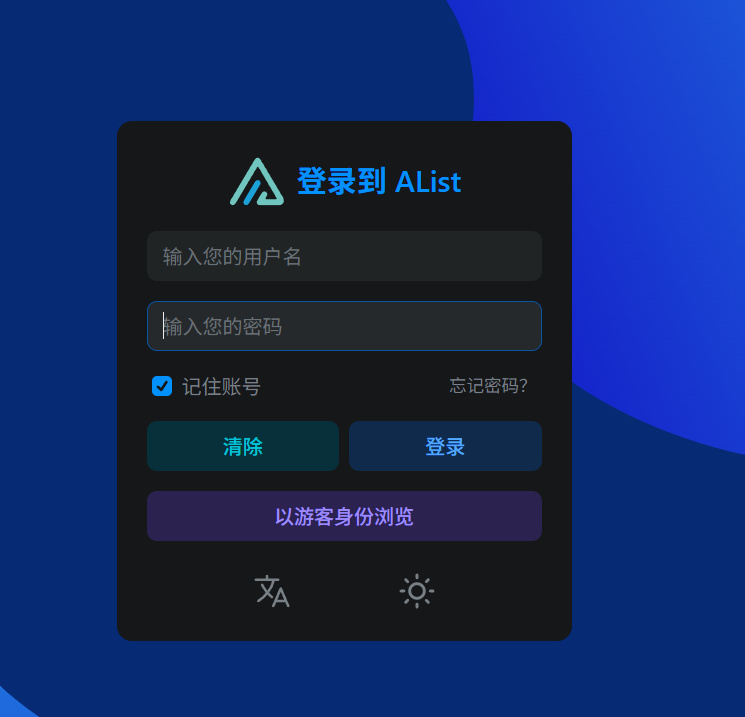

服务器+地址端口访问出现如下界面就是部署成功

jellyfin

Jellyfin是一款开源的媒体服务器，其实用emby也可以，但是jellyfin 你不用任何配置就可以使用302转发进行直连播放，对小白比较友好，并且完全开源免费，电视、手机、电脑客户端都是免费的。

因为我刮削的都是小姐姐，这里就不放图了

部署

docker

media目录需要注意以下，需要和alist-strm生成strm的文件夹一样

docker run -d \
 --name jellyfin \
 --user uid:gid \
 --net=host \
 --volume /path/to/config:/config \ # Alternatively --volume jellyfin-config:/config
 --volume /path/to/cache:/cache \ # Alternatively --volume jellyfin-cache:/cache
 --mount type=bind,source=/path/to/media,target=/media \
 --restart=unless-stopped \
 jellyfin/jellyfin

Docker Compose

services:
  jellyfin:
    image: jellyfin/jellyfin
    container_name: jellyfin
    user: uid:gid
    network_mode: 'host'
    volumes:
      - /path/to/config:/config
      - /path/to/cache:/cache
      - type: bind
        source: /path/to/media
        target: /media
      - type: bind
        source: /path/to/media2
        target: /media2
        read_only: true
      # Optional - extra fonts to be used during transcoding with subtitle burn-in
      - type: bind
        source: /path/to/fonts
        target: /usr/local/share/fonts/custom
        read_only: true
    restart: 'unless-stopped'
    # Optional - alternative address used for autodiscovery
    environment:
      - JELLYFIN_PublishedServerUrl=http://example.com
    # Optional - may be necessary for docker healthcheck to pass if running in host network mode
    extra_hosts:
      - 'host.docker.internal:host-gateway'

nginx 配置参考

server {
    # Nginx versions prior to 1.25
    #listen 443 ssl http2;
    #listen [::]:443 ssl http2;

    # Nginx versions 1.25+
    listen 443 ssl;
    listen [::]:443 ssl;
    http2 on;

    server_name jellyfin.example.org;

    ## The default `client_max_body_size` is 1M, this might not be enough for some posters, etc.
    client_max_body_size 20M;

    # Comment next line to allow TLSv1.0 and TLSv1.1 if you have very old clients
    ssl_protocols TLSv1.3 TLSv1.2;

    ssl_certificate /etc/letsencrypt/live/example.org/fullchain.pem;
    ssl_certificate_key /etc/letsencrypt/live/example.org/privkey.pem;
    include /etc/letsencrypt/options-ssl-nginx.conf;
    ssl_dhparam /etc/letsencrypt/ssl-dhparams.pem;
    ssl_trusted_certificate /etc/letsencrypt/live/example.org/chain.pem;

    # use a variable to store the upstream proxy
    set $jellyfin 127.0.0.1;

    # Security / XSS Mitigation Headers
    add_header X-Content-Type-Options "nosniff";

    # Permissions policy. May cause issues with some clients
    add_header Permissions-Policy "accelerometer=(), ambient-light-sensor=(), battery=(), bluetooth=(), camera=(), clipboard-read=(), display-capture=(), document-domain=(), encrypted-media=(), gamepad=(), geolocation=(), gyroscope=(), hid=(), idle-detection=(), interest-cohort=(), keyboard-map=(), local-fonts=(), magnetometer=(), microphone=(), payment=(), publickey-credentials-get=(), serial=(), sync-xhr=(), usb=(), xr-spatial-tracking=()" always;

    # Content Security Policy
    # See: https://developer.mozilla.org/en-US/docs/Web/HTTP/CSP
    # Enforces https content and restricts JS/CSS to origin
    # External Javascript (such as cast_sender.js for Chromecast) must be whitelisted.
    add_header Content-Security-Policy "default-src https: data: blob: ; img-src 'self' https://* ; style-src 'self' 'unsafe-inline'; script-src 'self' 'unsafe-inline' https://www.gstatic.com https://www.youtube.com blob:; worker-src 'self' blob:; connect-src 'self'; object-src 'none'; frame-ancestors 'self'; font-src 'self'";

    location / {
        # Proxy main Jellyfin traffic
        proxy_pass http://$jellyfin:8096;
        proxy_set_header Host $host;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_set_header X-Forwarded-Proto $scheme;
        proxy_set_header X-Forwarded-Protocol $scheme;
        proxy_set_header X-Forwarded-Host $http_host;

        # Disable buffering when the nginx proxy gets very resource heavy upon streaming
        proxy_buffering off;
    }

    location /socket {
        # Proxy Jellyfin Websockets traffic
        proxy_pass http://$jellyfin:8096;
        proxy_http_version 1.1;
        proxy_set_header Upgrade $http_upgrade;
        proxy_set_header Connection "upgrade";
        proxy_set_header Host $host;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_set_header X-Forwarded-Proto $scheme;
        proxy_set_header X-Forwarded-Protocol $scheme;
        proxy_set_header X-Forwarded-Host $http_host;
    }
}

server {
    listen 80;
    listen [::]:80;
    server_name jellyfin.example.org;
    return 301 https://$host$request_uri;
}

运行测试

服务器IP地址+端口访问，有登录界面就算成功

配置

alist添加储存

参考文档：添加存储 | AList文档是alist的文档，可以参考添加储存

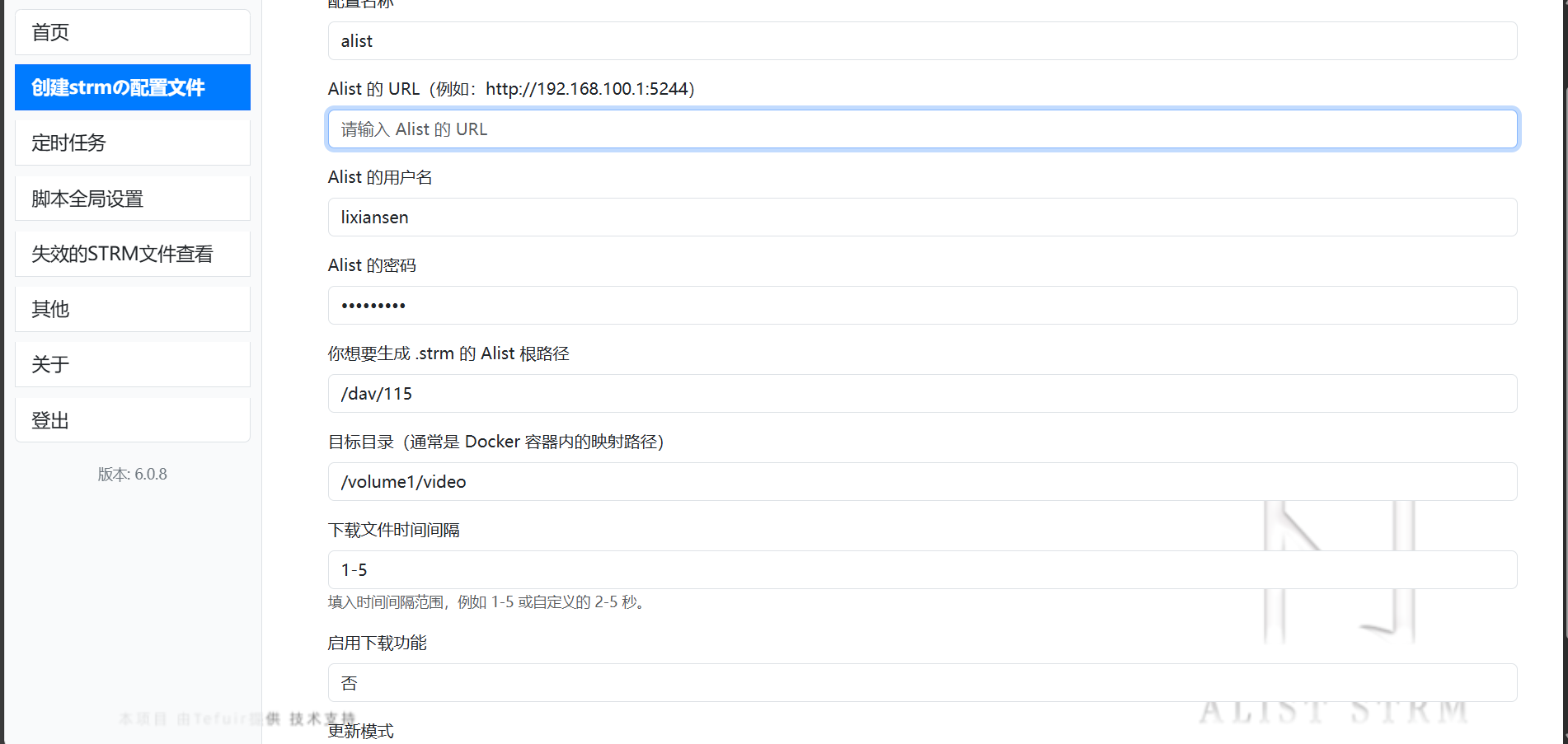

alist-strm 配置

alist根路径就是你想根据alist中哪一个网盘下面的哪一个文件夹生成strm文件，dav不用输入，是自动生成的，直接输入路径即可

jellyfin配置

就是将strm的文件夹作为媒体库的地址就行
